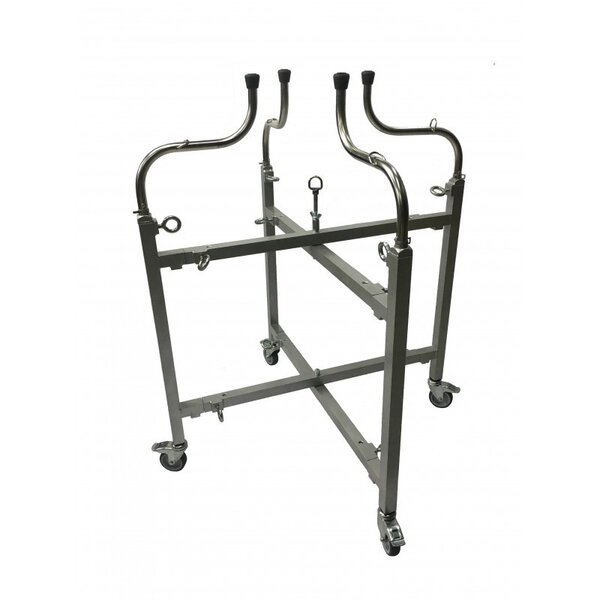

This collapsible multifunctional aluminum table is designed by Dne prodent tools for the repair of removable car parts - hood, doors, trunk lid, etc. The table consists of a sliding part and four adjustable S-shaped legs.
The main load-bearing parts of the table are made of a solid aluminum profile tube 30x30 mm. Extendable adjustable S-shaped supports are made of polished stainless steel d = 20 mm. Sliding table guides along the width are also made of stainless steel profile pipes. The table rests on four castors d = 75 mm. with fixation.

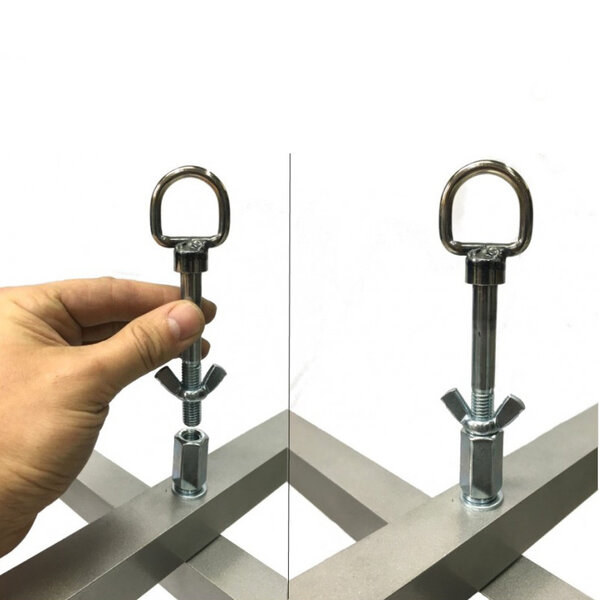

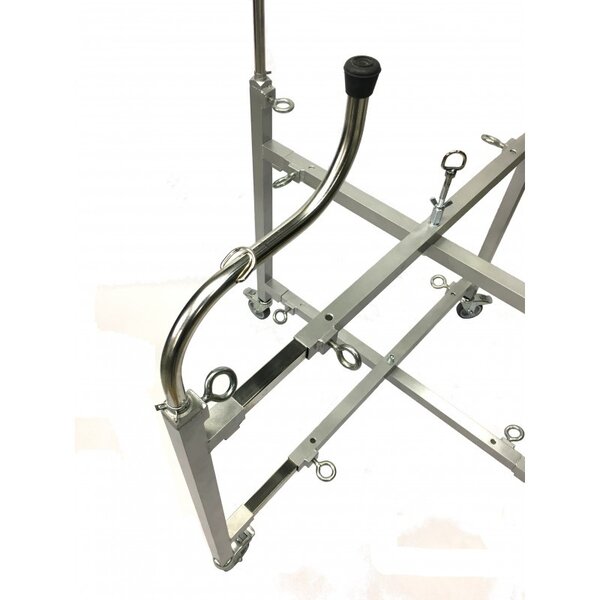

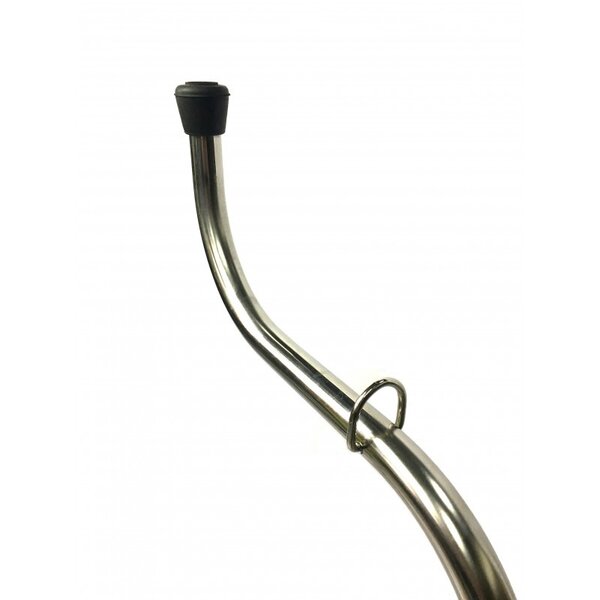

In the center of the table there is a removable catch to lock the boot lid. On S-shaped retractable supports, there are quick-release clamps for setting the preliminary working height of the table without the need to fix them with a screw. Also on the retractable supports there is a half-ring for additional fixation of the part to be repaired and a rubber support tip. All movable parts of the table are fixed with a screw-ring, which provides maximum convenience when fastening the part with ties to the table.
Overall dimensions of the table:
- Net weight - 12.8 kg
- assembled - 85 cm
- unfolded - 137 cm
- in the unfolded state, taking into account the S-shaped supports - 1900 mm.
- assembled - 102 cm
- unfolded - 145 cm
